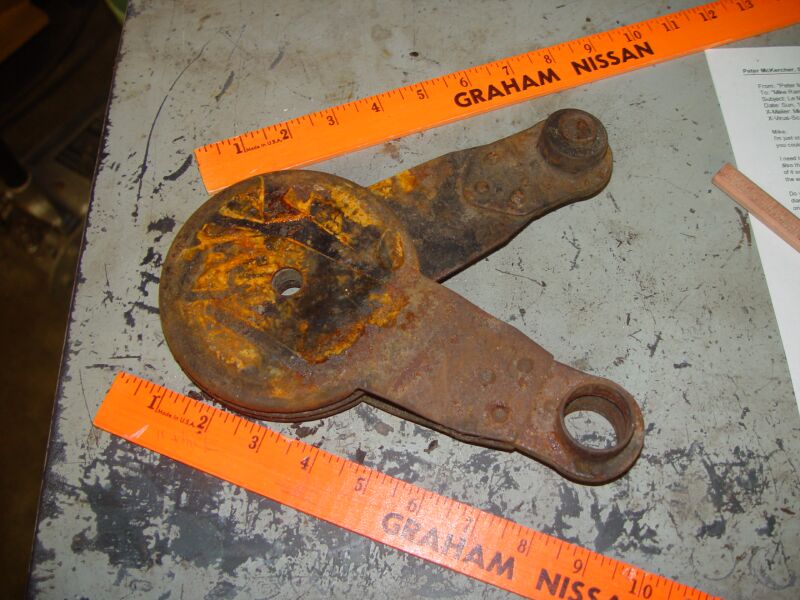

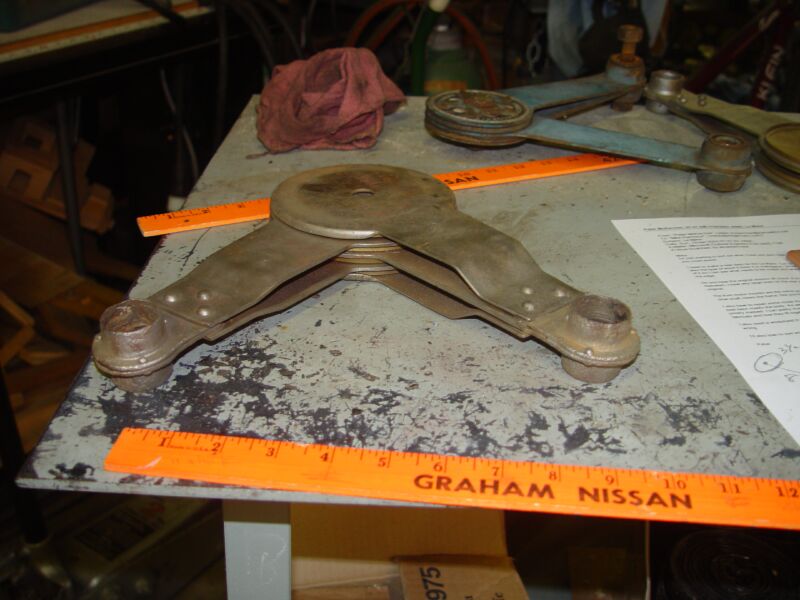

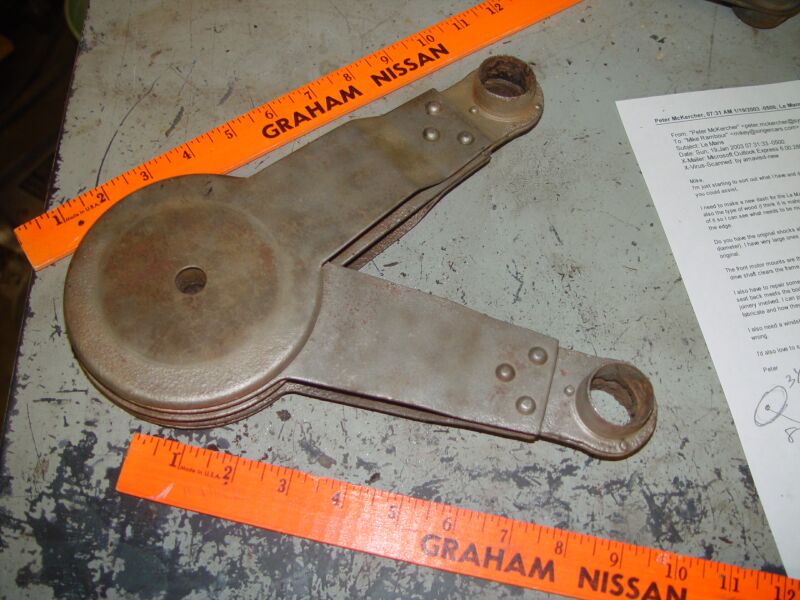

These are my original front shocks, when I purchased the car I was told by Phillip they were not original. So I started hunting for some new ones. The round part is 3 1/2" in diameter and the legs are 8" center of bolt to center...

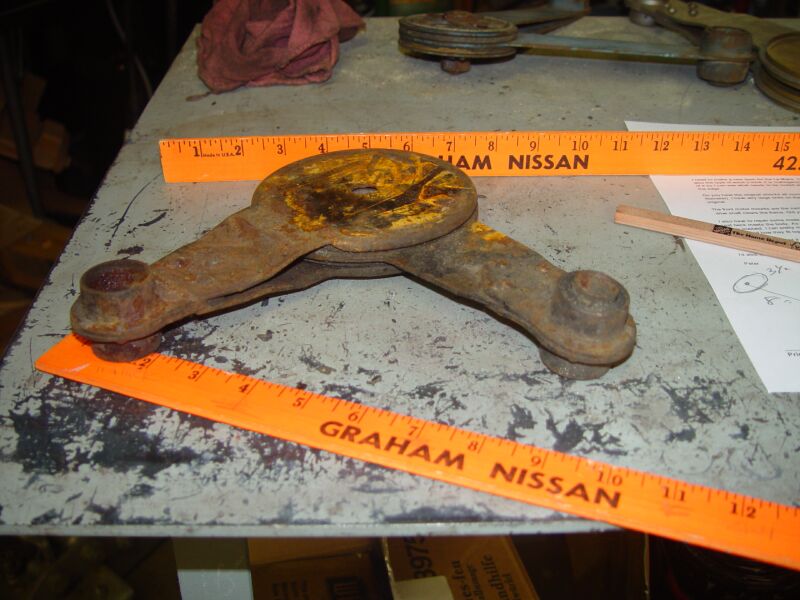

These are the front shocks that Phillip sold me and said were original. The round part is 4 1/2" in diameter and the legs are 6 1/2" with the double armed leg being 6" (again center of bolt to center). Dave Hardwick said they were not original but of course he had original ones.

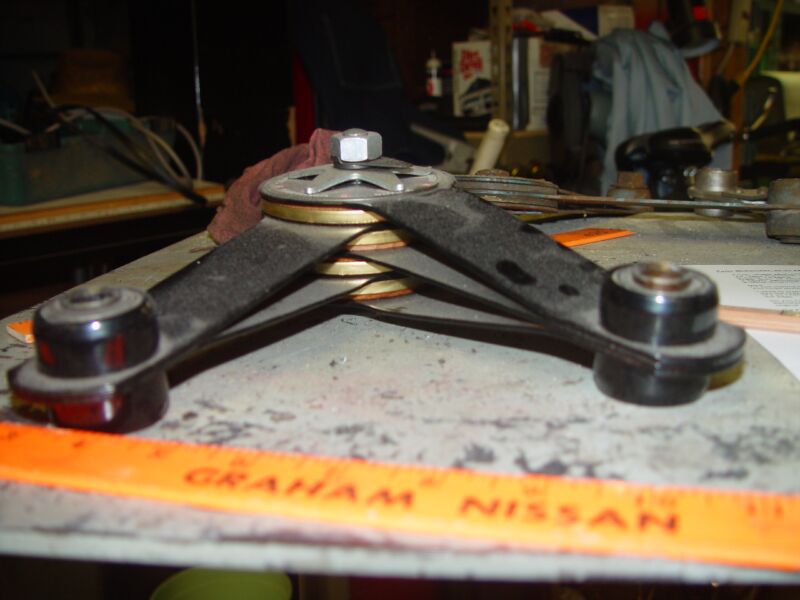

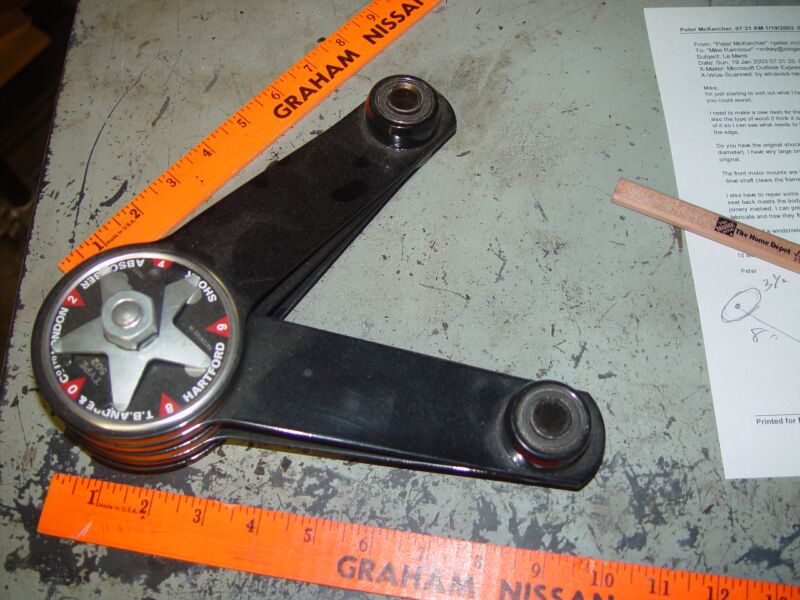

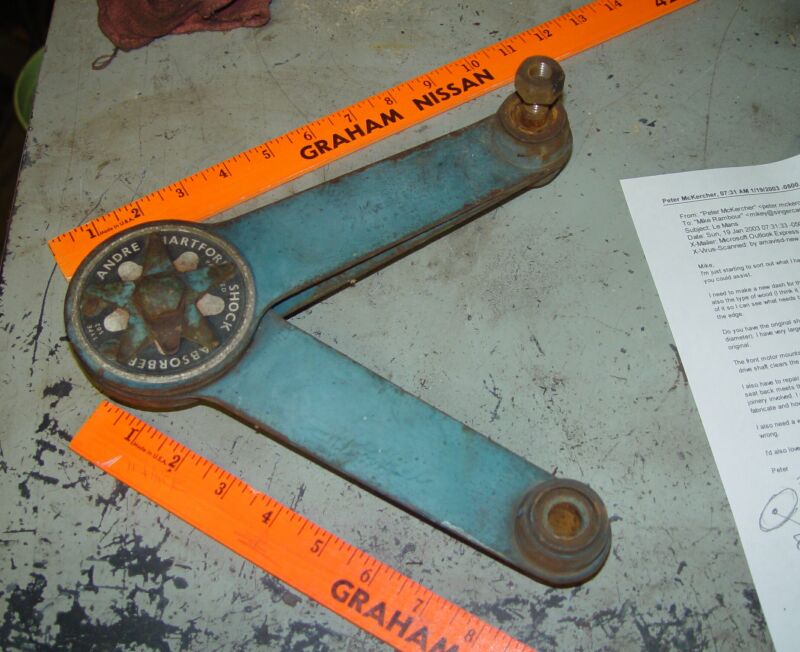

And these are the ones that Dave Hardwick sold (actually Trevor but through Dave) me as being the correct front shocks. The round part is 3 1/2" and the legs are 7 1/8". I am told these are the correct ones and it does not matter, these are the ones I will use.

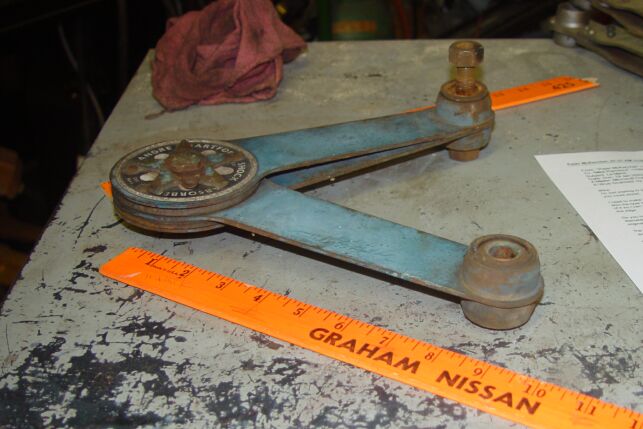

These are the rear shocks that came with my car, I believe them to be original. The round part is 4 1/2" and the legs are 7 7/8". These were pretty well "on" the car and for sure have not been off the car in forever implying to me they are original. Also Phillip says they are, for what that is worth.

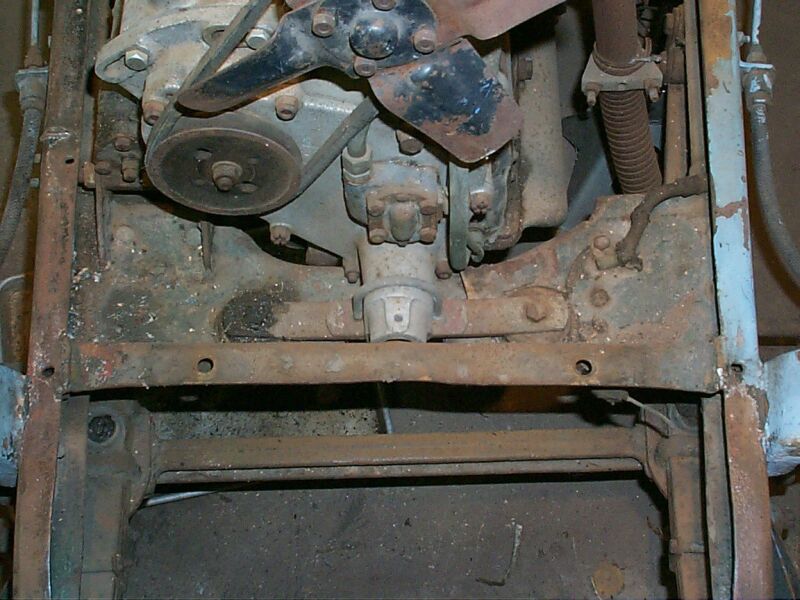

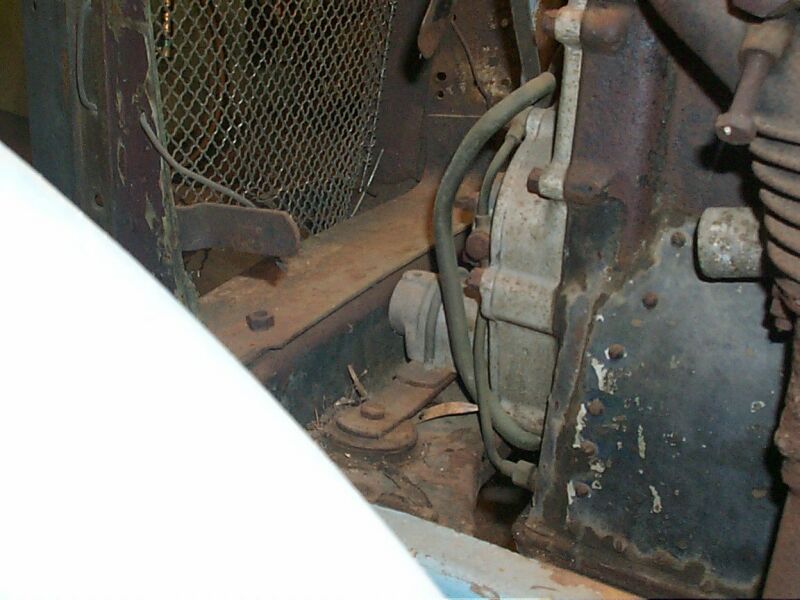

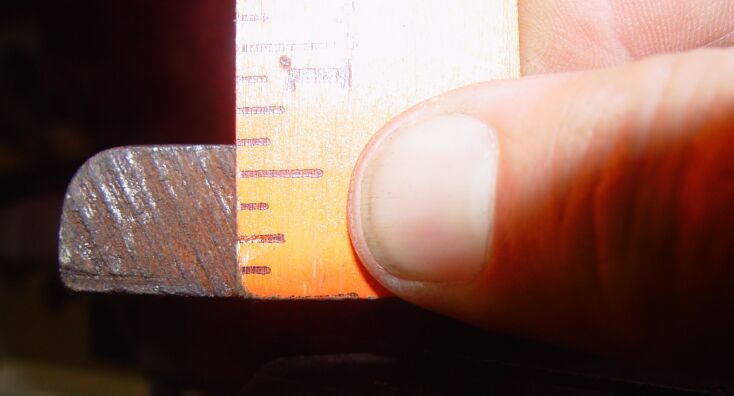

I am afraid that this is all I have of the front motor mount...pretty useless to you, sorry.

I only have a remant of the dashboard, so I can't help with a pattern but here is the profile of it.

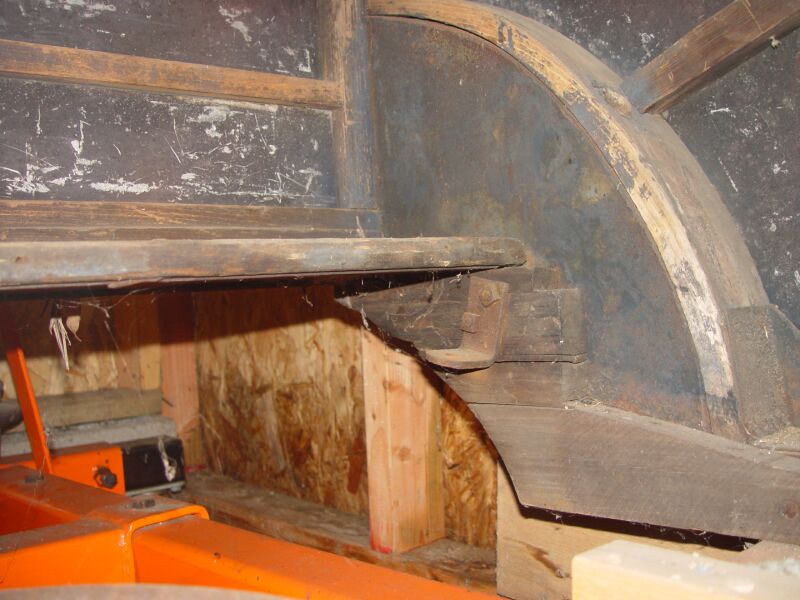

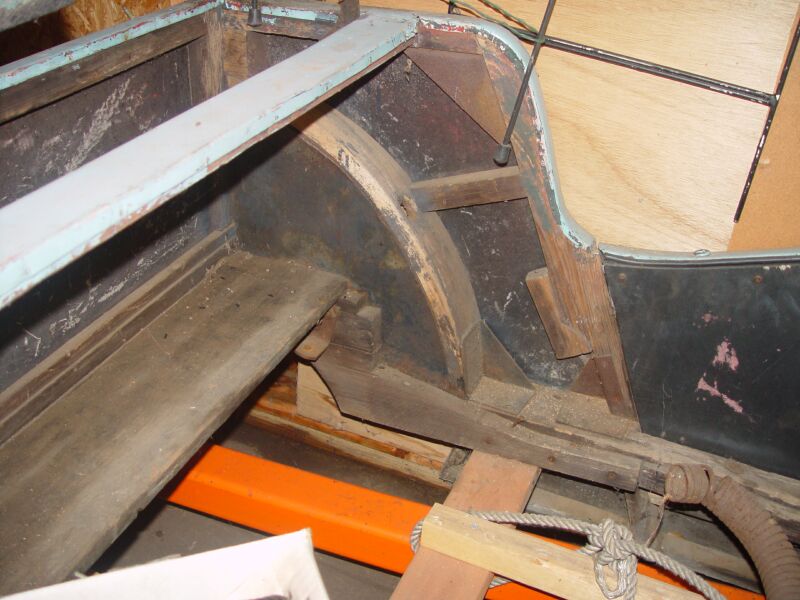

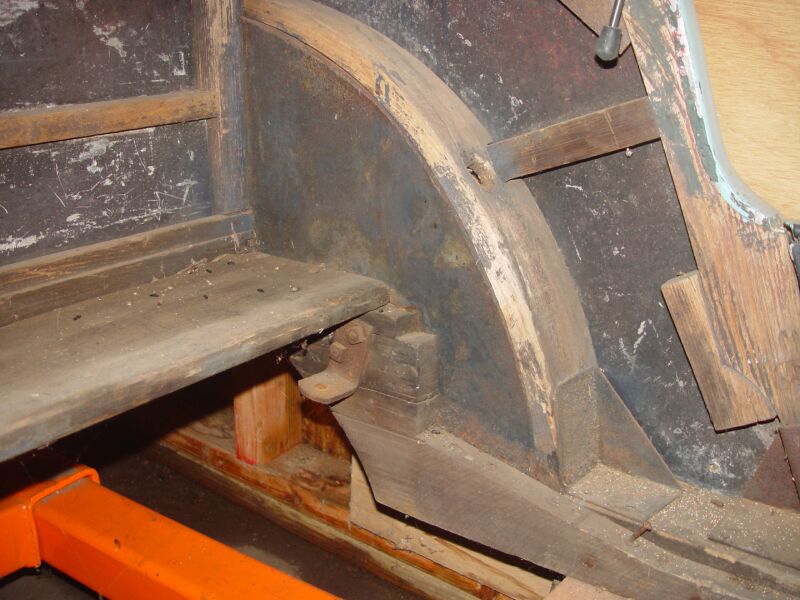

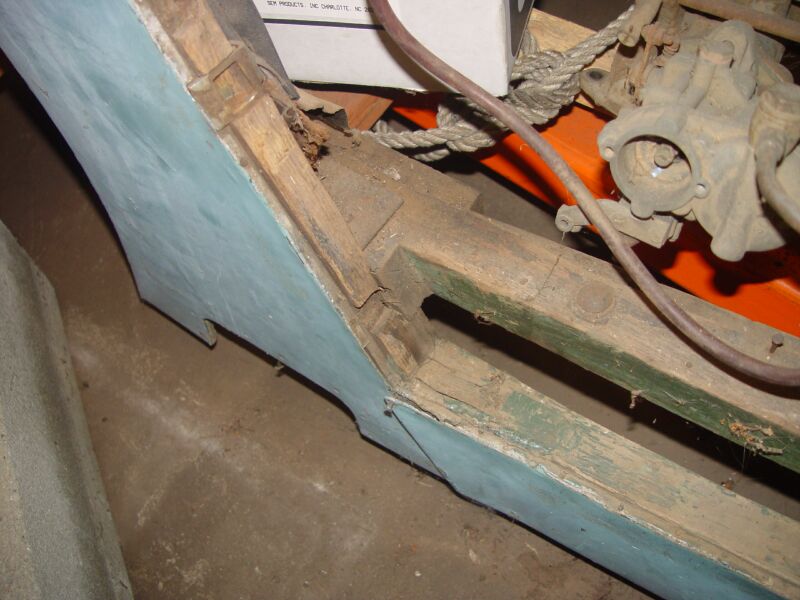

I was not sure what you want/need to see on the body, so here is a start...tell me what details you need. And this time you won't have to wait 2 weeks :)

Mike
